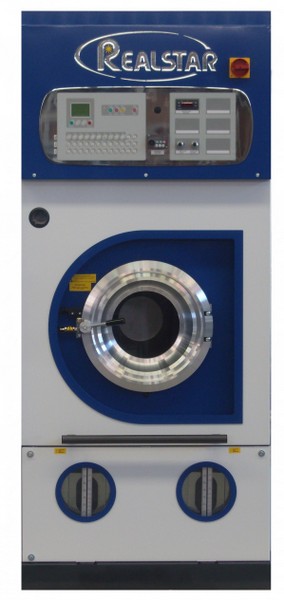

R 210 R 310
R 210 E - R 210 L - R 310
Our perchloroethylene line with 10 Kgs. capacity
Standard features fitted on the new R Series
• Floor guard, Solvent safety tray
• Air-operated interlocks and micro-switches on all doors
• Water safety valve
• INVERTER on the main motor
• Sound-proofing cover for the fridge unit
• Closed circuit system with heat pump
• Continuous or temporary distillation
• Automatic button trap drying system
• Large double air lint filter
• Automatic still wall washing system
• Still inspection light
• Choice of solvent filtration systems available
• Automatic electronic drying thermostat
• ELECTRIC or STEAM heating
• Still with pressurized water system
COLOURS OF THE PANELLING UPON CUSTOMER REQUEST
Model |
R-210E |
R 210 L |
R 310 |
Load capacity ratio 1:20 lt |
10 |
10 |
10 |
Volume of the drum lt |
200 |
200 |
200 |
Diameter mm |
700 |
700 |
700 |
Depth mm |
500 |
500 |
500 |
Wash speed rpm |
20-50 |
20-50 |
20-50 |
Extract speed rpm |
300-400 |
300-400 |
300-400 |
Door opening mm |
350 |
350 |
350 |
Volume 1st tank lt |
75 |
75 |
75 |
Volume 2nd tank lt |
75 |
75 |
75 |
Volume 3rd tank lt |
--- |
--- |
120 |
Useful still capacity lt |
84 |
84 |
84 |
Total volume of the still lt |
100 |
100 |
100 |
